Electrical hardware often fails when copper components cannot maintain consistent conductivity under load. It can be challenging to find high-conductivity, pure-copper castings with verified performance and practical production options.
At Lincoln Foundry, we produce high-conductivity, pure-copper castings that meet the needs of electrical applications without forcing customers into high-volume production requirements. Our process provides customers with reliable conductivity, clean cast surfaces, and flexible options for downstream machining and plating.
Read on to learn more about high-conductivity pure copper castings and how they are used across a wide range of electrical and construction infrastructure applications.
Get a Quote for High-Conductivity Pure Copper Castings »
High-conductivity pure-copper castings are sand-cast components used in electrical hardware where efficient current transfer is most critical. Conductivity is measured by the International Annealed Copper Standard (IACS), which rates annealed pure copper at 100%.
That rating gives engineers a clear way to compare copper castings used in electrical maintenance and construction. In these applications, pure copper helps carry current efficiently while managing heat, resisting corrosion, and withstanding continuous electrical load.
Sand casting also makes these parts practical when the design calls for complex geometries. Producing the same part from solid copper stock can require extensive material removal and longer machining time. Electrical engineers specify pure copper for infrastructure components that require minimal electrical resistance.
Pure copper gives electrical hardware the right mix of conductivity and workability.
Lincoln Foundry brings over 50 years of sand-casting experience from a third-generation, family-owned facility in Erie, Pennsylvania. We pour pure copper with 99.99% purity and target 85%-90% IACS conductivity for electrical hardware. Our team handles complex geometries and low-volume production runs that high-volume foundries decline to handle.

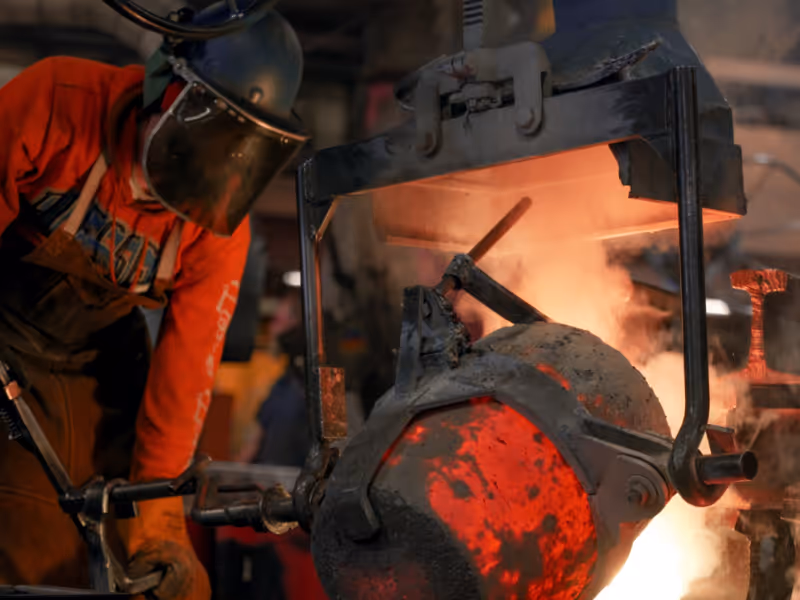

We document every pure copper pour and identify the foundryman behind that heat. Two 175 kW electric induction furnaces and calibrated immersion pyrometers power and monitor our melt process. Parts ship raw or rough-cast, and third-party providers apply silver-matte, pin, and chrome finishing to surfaces prepared by shot blasting and grinding.
We accept orders for pure copper ranging from 0.01 pounds to 100 pounds. Maximum casting length reaches 3 feet, and dual-pot pouring handles larger work, but maxes out our capabilities. While high-volume foundries often decline prototype quantities and short production runs, we gladly accommodate them.
Raw or rough-cast delivery lets you keep control of final machining while we handle the casting work. This approach keeps production practical for complex copper parts without forcing unnecessary finishing steps before the part reaches your shop.
High-conductivity pure copper castings support electrical infrastructure where reliable current transfer and thermal management are critical.
These components are used in a wide range of applications, including:
The International Annealed Copper Standard (IACS) established a baseline in 1913 for measuring electrical conductivity. Pure annealed copper has an IACS rating of 100% at 20°C. Sand casting typically achieves 75% IACS because molten copper absorbs atmospheric gases during the pour.
Permanent mold processes use oxygen-free grades and metal molds to block contamination and achieve 98% to 101% IACS. Deoxidizing agents like phosphorus remove gases from sand-cast copper, leaving trace impurities that scatter electrons and establish the 75% industry baseline. Controlled deoxidation pushes sand-cast pure copper above 75% and preserves design flexibility.
Lincoln Foundry produces smooth-surface, pure-copper castings that require minimal finishing without extensive rework. Surface quality affects plating adhesion, and poor adhesion degrades conductivity and invites corrosion. Clean casting surfaces reduce downstream machining time and streamline finishing.
Shot blasting and grinding prepare every surface for plating. We then coordinate silver-matte plating, pin plating, and chrome finishing through trusted third-party providers. Your castings arrive coated and ready for electrical or aesthetic use.
Our SpectroLab analyzer confirms the chemical composition and purity of every pure copper pour. The bar puller tests the mechanical integrity to verify tensile strength meets the specification. These tools work together to confirm that conductivity, purity, and structural performance align before castings leave our facility.
Testing at the foundry catches deviations before parts reach your assembly line. Electrical hardware demands consistent metallurgy because trace impurities degrade IACS performance and compromise electrical connections. In-house testing means we control quality across melting, pouring, and shipment.
Q: What conductivity can I expect from Lincoln's sand-cast pure copper?
A: We target 85% to 90% IACS. This exceeds the typical 75% baseline for sand-cast pure copper across the industry.
Q: Why choose Lincoln Foundry for sand-cast pure copper instead of permanent mold?
A: Sand casting produces complex pure copper parts without expensive tooling. Our team traces each pour to the foundryman and verifies every heat with calibrated meters.
Q: What finishing options are available?
A: We coordinate silver-matte plating, pin plating, and chrome finishing through third-party providers. Shot blasting and grinding are included with every order.
Q: What size and weight limits apply?
A: We cast pure copper parts from 0.01 pounds to 100 pounds. Maximum length reaches 3 feet.
Q: How does Lincoln verify copper purity?
A: Our SpectroLab analyzer checks chemical composition on every pour. The bar puller confirms tensile strength and mechanical integrity.
High-conductivity pure copper castings help electrical components perform consistently in industrial settings. They offer strong conductivity, flexible part design, and long-term value.
Lincoln Foundry casts pure copper parts that typically achieve 85% to 90% IACS in sand-cast pure copper. We help customers source complex copper components with practical production options.
Click below to request a quote and learn more about high-conductivity, pure-copper castings.
